    2030 Double XYZ 3 Axis Stone CNC Machines 3000mm Granite Engraving Machine

    Ask Lasest Price
    Brand Name : Hizar
    Model Number : HCNCEG-2030
    Certification : CE
    Supply Ability : 50pcs/month
    Delivery Time : 30days
    Price : Negotiation
    • Product Details
    • Company Profile

    2030 Double XYZ 3 Axis Stone CNC Machines 3000mm Granite Engraving Machine

    2030GDouble Independent Head CNC Stone Engraving Machine​


    1.Description


    1. XYZ three-axis 30 guide rails are bold (others mostly use 25 rails)
    2. Optimized oil circuit, 3 oil pumps (mostly 1 oil pump in other companies)
    3. Shanghai Weihong professional engraving system (many others are Shanlong or ordinary Weihong high imitation board cards)
    5. Professional stone custom bearing spindle 5.5KW (many others are 5.5KW ordinary spindle)
    6. Spindle automatic cooling system (others are mostly small water pumps)
    7. The bed has a three-layer design structure, the weight of the machine is more than 500KG heavier than other brands

    2.Specification


    Product name2030GDouble Independent Head CNC Stone Engraving Machine

    Model number

    2030GDouble Independent head
    Contour dimension2500*3300*2300
    Machining dimension2000*3000
    Dimension of processing materialDouble Head:900*3300 Single head:1500*3000
    Machine weight2.5T
    BedThickened Bridge Steel
    Cross beamThickened Bridge Steel
    Guide RailXYZ Axis 25 Lepin Guide
    RackX, Y helical teeth
    Screw RodZ AXIS PMI screw
    Transmission ModeServo motor drive,Z-direction screw drive

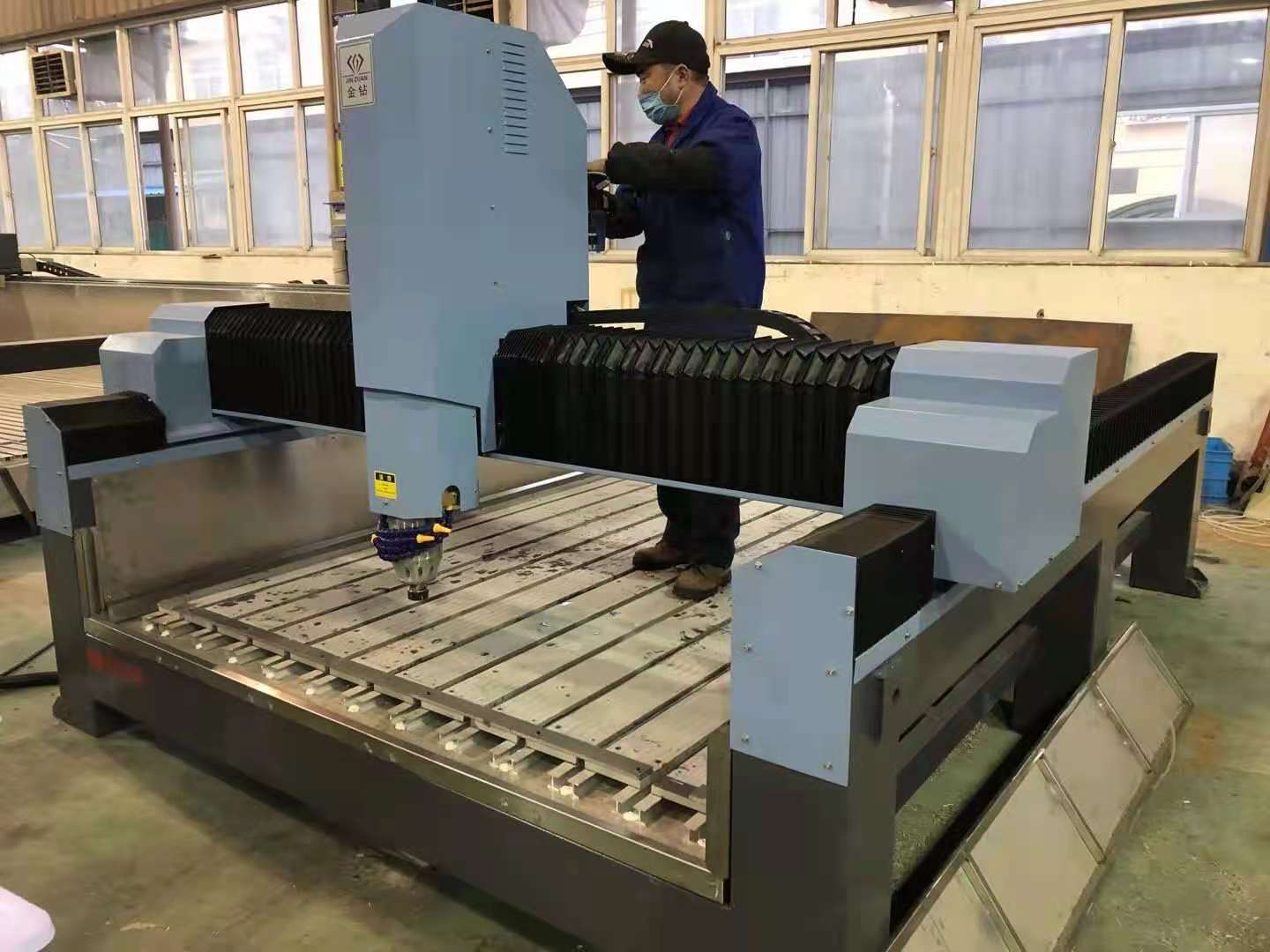

    3.Product Pictures



    Quality 2030 Double XYZ 3 Axis Stone CNC Machines 3000mm Granite Engraving Machine for sale
